WellWorx Energy – Put simply, we’re incredibly passionate about what we do and collectively have hundreds of years in the petroleum industry and numerous patents to prove it. Our team understands today’s dynamic challenges require dynamic solutions and we’re here to deliver! Penta is proud to offer the WellWorx line of Downhole Separators and Control Devices. Designed by a team that shares our passion for rod pump optimization, these products are available to take your wells to the next level.

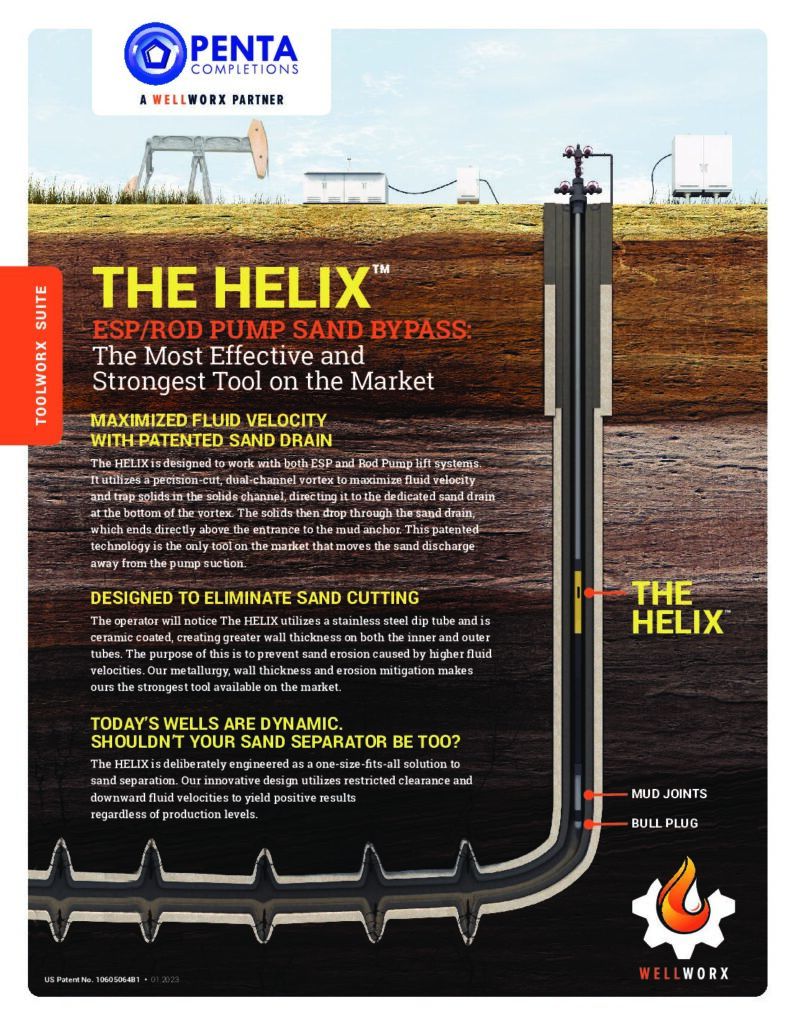

The HELIX

The HELIX ESP/Rod Pump Sand Bypass is the strongest & most effective tool on the market.

The HELIX is designed to work with both ESP and Rod Pump lift systems. It utilizes a precision-cut, dual channel vortex to maximize fluid velocity and trap solids in the solids channel, directing it to the dedicated sand drain at the bottom of the vortex. The solids then drop through the sand drain, which ends directly above the entrance to the mud anchor. This patented technology is the only tool on the market that moves the sand discharge away from the pump suction.

Improved Performance

Aggressive downward pitch of spiral
Dual channel spiral increases capture of fine sand particles
Patented drain allows for discharge directly into mud anchor and away from pump suction
ESP Model boasts a custom ceramic coating to reduce tool wear and fluid friction effects
Strongest tool available on the market with the greatest wall thickness, built for durability in harsh conditions

Greater Suction/Discharge Velocity Ratio

Larger dip tube diameter reduces suction and increases downward velocity
Forces higher rotational velocity due to more spirals
Precision Machine-Cut Spiral
Effective on mesh sizes 20-100

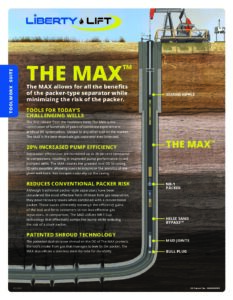

The MAX

The MAX is the culmination of hundreds of years of combined experience in artificial lift optimization. Unique to any other tool on the market, the MAX is the best downhole gas separator ever invented.

Separation efficiencies are increased up to 20% compared to competitors, resulting in improved performance in rod pumped wells. The MAX creates the greatest tool OD to casing ID ratio possible, allowing users to maximize the annulus of the given well bore. Gas escapes naturally up the casing.

All the benefits of a packer style separator, without the risk of a packer.

Set TAC above the assembly
Packer elements require no slips
No need to pull tension into the tool

Patented Shroud provides protection against a leaky seal assembly

Patented features to improve turbulence and emulsions

No Baffles
Less emulsions in fluid columns

Smaller OD for MAXimized separation areas

20% efficiency increase, on average, depending on application

Designed to be ran in conjunction with patented HELIX sand bypass

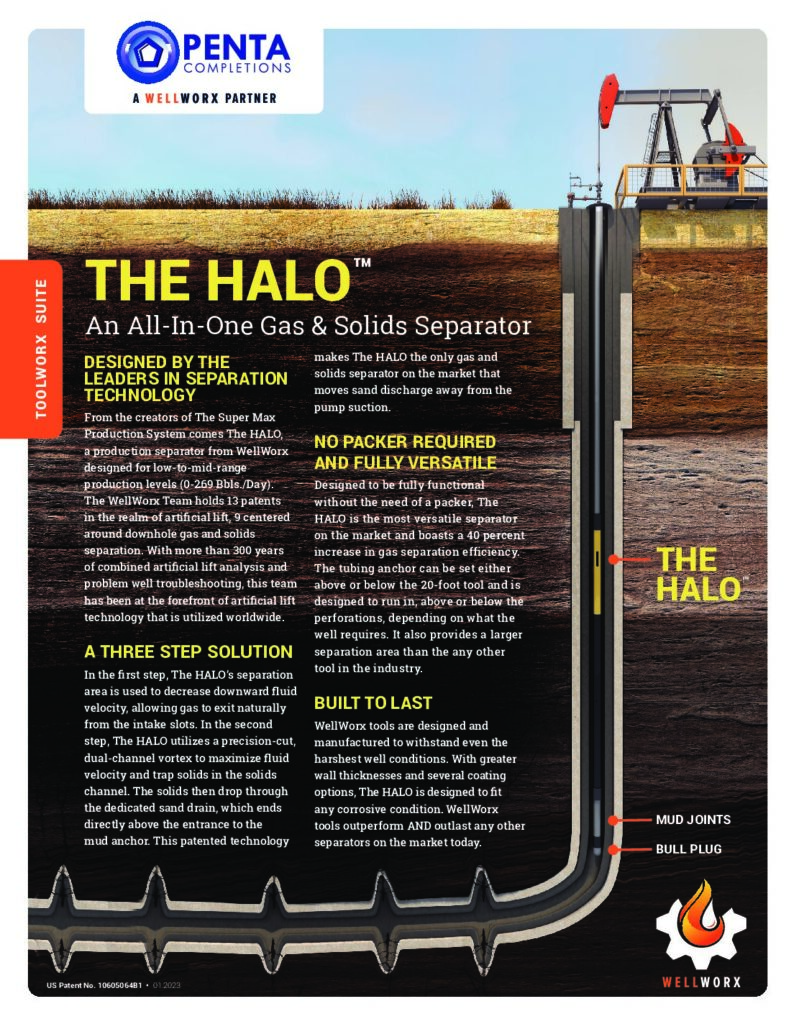

The HALO

The HALO all-in-one gas & solids separator is designed to be fully functional without the need for a packer, The Halo is the most versatile separator on the market and boasts a 40 percent increase in gas separation efficiency.

Three Step Solution

In the first step, the HALO’s separation area is used to decrease downward fluid velocity, allowing gas to escape naturally from the intake slots. In the second step, the HALO utilizes a precision cut, dual channel vortex to maximize fluid velocity and trap solids in the solids channel. The solids then drop through the dedicated sand drain, which ends directly above the entrance to the mud anchor. This patented technology makes the HALO the only gas and solids separator on the market that moves sand discharge away from the pump intake.

Improved Performance
